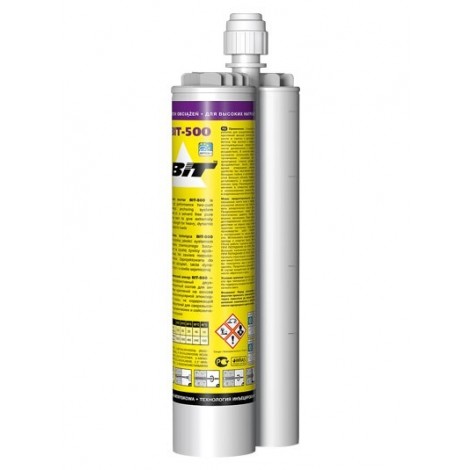

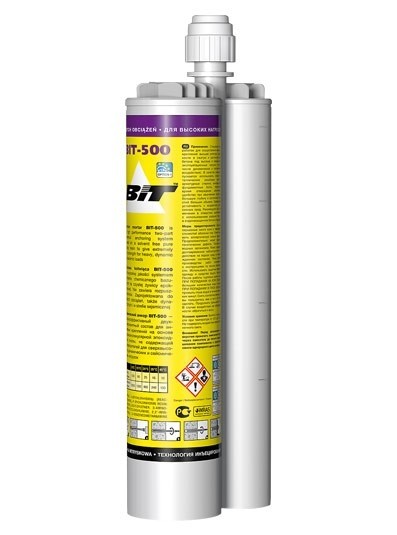

A two component chemical anchoring injection system, in 3:1 ratio. A formulation derived from pure epoxy with very high bond strength, developed principally to anchor threaded rods and rebar into concrete. Used for high performance structural applications
CHARACTERISTICS:
• Suitable for high loads featuring large diameters and deep embedment.
• Longer working times make it suitable for large holes, and high temperatures.
• No shrinkage, good for large diameter fixings.
• Use in wet or flooded environments and fixing holes, or underwater.
• High durability, resistance to chemicals.
• Used for diamond drilled holes.
• Solvent free resin.
• Fixings in concrete, wood, or other high strength materials.
APPROVALS / REPORTS:
• 15/0245 - ETA Option 1 Cracked Concrete / TR029 / TR045 / C2 Seismic. Includes flooded
holes, and wet and dry concrete conditions.
• 14/0026 - ETA TR023 Post Installed Rebar Installations.
• CE Certified 2873-CPR-M-592 - ISFW
• ICC-ES Approval ESR 3853 Cracked and Uncracked 2012,2009,2006 IBC & IRC compliant.
• F240 Fire Test Report iBMB MPA & CSTB Report 26059195 for 8 to 32mm Ø
• Complies with Highways Agency Interim Advice Note 104/15.
• WRAS Approved for use with Potable drinking water* 1811577
• LEED tested 2009 EQ c4.1 SCAQMD rule 1168 (2005.)
• VOC A+ Rating (Volatile Organic Content)
AVAILABILITY:
• 385 ml | 585 ml | 1400 ml.
