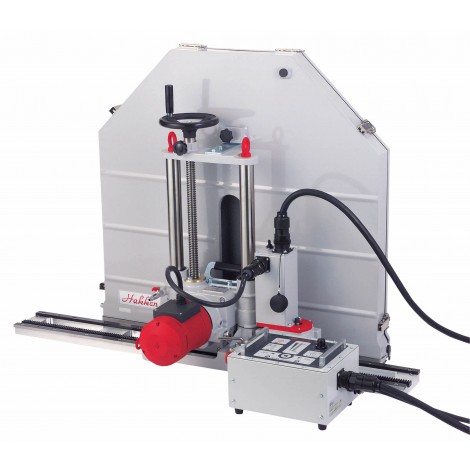

| ¦ | Super powerful electric wall cutter !! | |
| ¦ | Equipped with super strong motor Rated output 2300W 230V specification | |
| ¦ | Water seal can be replaced without disassembling the gearbox | |
| ¦ | Geared motor and base can be separated | |
| ¦ | The wall cutter can be attached and detached from anywhere on the track rail. | |
| ¦ | The feed part can be attached to either the left or right side. | |
| ¦ | Uses a one-touch plug system with excellent strength and waterproofness for connecting operation cords | |
| ¦ | Increased track rail plate thickness and increased strength | |
| ¦ | The front of the blade cover can be separated | |
| ¦ | Can be cut with a 40 "blade by step cutting | |
| ¦ | Automatic feed disconnection possible | |
| ¦ | Achieves high cutting performance by developing a dedicated blade |
| Specification table | ||
| Model name | CDW-401AE Pro | |
| Power supply | Single-phase 230V 50 / 60Hz | |
| Rated current | 15A | |
| Rated output | 2,300W | |
| No-load rotation speed | HI | 780min -1 |
| LOW | 320min -1 | |
| Standard blade nominal diameter | 30 "(782mm) | |
| Maximum blade nominal diameter | 40 " (1,036mm) in step cutting | |
| Blade hole diameter | 35mm | |
| Maximum depth of cut | 30 "(782mm) | 311mm |
| 40 " (1,036mm) | 438mm | |
| Dimensions W × L × H | 484 x 453 x 753 mm | |
| mass | 35.8kg | |
| Standard accessories |
Tool Box Single-ended Spanner 24mm Ratchet Wrench 14 × 17mm Hex Wrench 5mm 6mm Chili Blown Hex Bolt W3 / 8 × 38mm (8) W3 / 8 × 50mm (8) Square Washer W3 / 8 × 50 × 30 × t6 (8) Flat Washer W3 / 8 (8) Speeder 204 Extension Bar 307 Universal Joint 208 Socket 3D-13 |
|
|
