SPN-202 Series

₹0.00

Availability: In stock

Quick overview

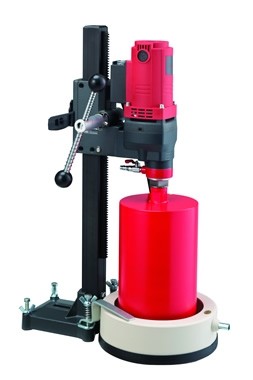

Middle Class single speed Drill Head for professional

Qty:

Inquire Now

■	Single Speed motor
■	Maximum Output 2,400W
■	Swiveling Water Supply Cock
	Water Supply Cock can be positioned for necessary direction of water hose.
■	Equipped with slipping clutch
	Clutch torque can be easily adjusted at job site without disassembly of gear box.
■	Circuit protector for over load protection
■	Roller slide Drill Carriage Assy for cross-section 49x49 mm.
	Smooth feeding and precise drilling is possible.
■	One-touch handle
	Spring-loaded self centering handle is easy to change left and right side on carriage without tool.
■	Automatic Feeding System can be used by remodeling

Drill Head Specification
Model Name		SPN-202Ui	SPN-202Uw	SPN-202At
Power Source		230V	120V	110V
Rated Current		8.7A	15A	15A
Maximum Output		2,400W
No-load speed		710min^-1	700min^-1	760min^-1
Maximum bit diameter		205mm(8")
Spindle thread		G1/2"+ 1-1/4"-7UNC		A-rod
Size	W	247mm
	L	328mm
	H	419mm		413mm
Weight		11.3Kg	11.0Kg	10.8Kg
Safety Certification		CE	-	-
Drill Carriage Assy		Included
Pole Base		Not Included, SB-491 and AB-491 series can be combined.
The specifications and appearances are subject to change without prior notice.
