| ■ | 11kW low cost and easy maintenance model |
| ■ | Accurate discharge amount can be set by labeled |
| "Discharge amount and scale table" | |
| ■ | The pressure adjustment knob is equipped front |
| side so that pressure adjustment is easy | |
| ■ | "Reversal prevention relay" is built in the power |
| supply box so that reversal of the electric motor | |
| doesn’t happen due to the wrong wiring | |
| ■ | The hour meter shows the time to do maintenance |
| ■ | 5/8" hydraulic hose 20m (Low pressure drop type) is |
| standard accessory | |
| ■ | The machine is not certificated CE marking |
| ■ | Compact Hydraulic Wire Saw DSM series |
| ■ | Hydraulic Core Drill SPU series |
| ■ | Hydraulic Wall Cutter CHW series |
| Specification | |||

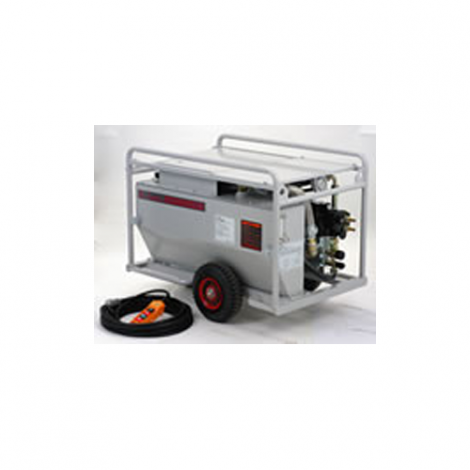

| Model Name | E-1124Ax | ||
| Power supply | 3-phase 400V 50/60Hz Commercial power source over 25A |
||
| Electric Motor | 3-phase induction motor Water-cooled 11kw 4P |
||
| Hydraulic Pump |
Type | Variable capacity piston pump | |
| Rated pressure | 21MPa | ||
| The range of adjusting discharge amount |
50Hz | 23.0～42.2 litter/min | |
| 60Hz | 27.7～50.7 litter/min | ||
| Coupling | Out | NITTO KOHKI Flat Face Cupla 1/2" Plug | |
| In | NITTO KOHKI Flat Face Cupla 1/2" Socket | ||
| Oil Tank Capacity | 57ℓ | ||
| Size W×L×H | 670×1,090×874mm | ||
| Weight (Excluded Code) | 340kg | ||
| Standard Accessories | Hydraulic Hose 5/8" Assy. FF Plug and Socket 20m (2) Single-ended Spanner 13mm (1) Instruction Manual (1) Hex. Bar wrench 2mm(1) |
||
|
